TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

Name: TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection
Brand: ANYO
Price: 1 USD

Buy cheap TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection product

Brand Name : ANYO

Model Number : TVR-F

Place of Origin : CHINA

MOQ : 10000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 50000pcs per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other Name : Zinc Oxide Varistor

Structure : Y kink lead

Body size : Φ5mm, 7mm, 10mm, 14mm, 20mm

Tolerance : ±10%

Packaging : Tape & reel packing

Solderability : 245±3℃, 3±0.3 sec

Contact Now

TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

Applications:

• Power supply
• Home appliance
• Industrialequipment
• Telecommunication or telephone system 5. Smartmeter
• PLC (Power line communication)
• Lighting products
• Photovoltaic industry

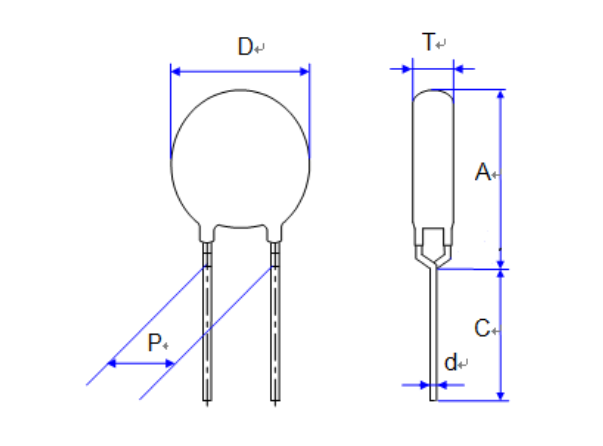

Dimensions:

TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

Series	D	Cmin.	d	P	Amax.
TVR05	5.0~7.0	20	0.6±0.02	5.0±0.5 (forTVR05180-561) 5.0±1.0 (for TVR05621-751)	9.5
TVR07	6.5~9.0	20	0.6±0.02	5.0±0.5 (forTVR07180-561) 5.0±1.0 (for TVR07621-821)	11.5
TVR10	9.5~12.5 9.5~13.5 (For TVR10182)	20	0.8±0.02	7.5±0.5 (forTVR10180-561) 7.5±1.0 (for TVR10621-182)	16.0
TVR14	13.5~16.0	20	0.8±0.02	7.5±0.5 (forTVR14180-561) 7.5±1.0 (for TVR14621-182)	19.0
TVR20	19.5~22.0	20	1.0±0.02	10±1	26.5

Soldering Recommendation:

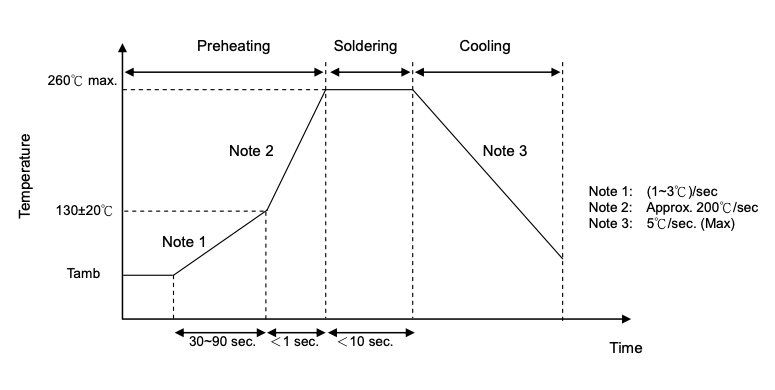

• Wave Soldering Profile

TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

• Recommended Reworking Conditions With Soldering Iron:

Item	Conditions
Temperature of soldering iron-tip	360℃ (max.)
Soldering time	3 sec (max.)
Distance from varistor	2mm (min.)
